A square insert that is only 1 mm too large can split a thin tube end or refuse to seat. One that is too small may rattle, fall out or leave an untidy gap. Knowing how to size square inserts properly starts with measuring the tube bore, not simply reading the outside dimension stamped on the steel.

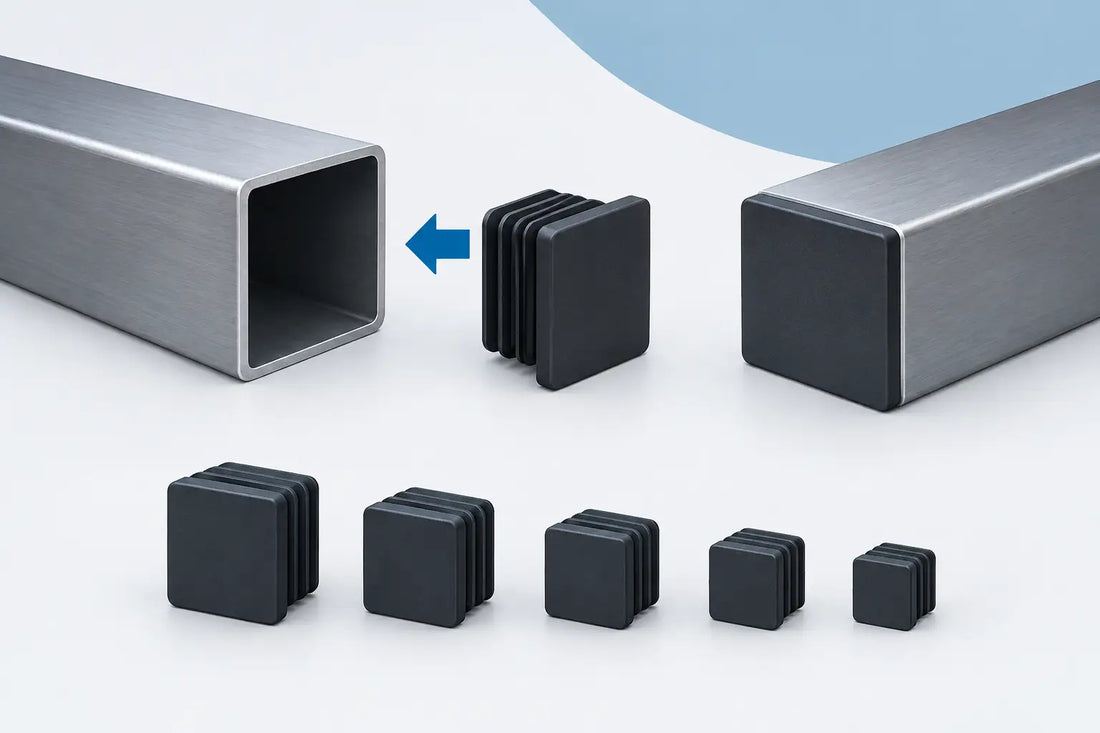

Square plastic tube inserts are designed to close the open end of box section, tube frames, furniture legs and fabricated assemblies. The visible head sits against the tube end, while the ribbed or finned shank pushes inside. A correct fit gives a clean finish, helps prevent dirt and moisture entering the tube, and stays in place during normal handling and use.
Start with the tube's outside size
Most square steel tube is described by its outside dimensions. For example, 25 mm square box section measures approximately 25 mm across each outside face. This is useful for identifying the section, but it is not enough on its own to select an insert.
The insert shank fits inside the tube. Its required size depends on the internal opening after the tube wall thickness has been allowed for. A 25 mm square tube made from 1.5 mm wall material has a nominal internal width of around 22 mm:
25 mm - 1.5 mm - 1.5 mm = 22 mm
In practice, the actual opening can vary slightly. Weld seam, internal corner radii, coating, galvanising and manufacturing tolerances all take up space. This is why an insert listed for a particular nominal tube size is often the best starting point, but the bore should still be checked where fit matters.
Measure the internal opening, not one point only
Use vernier callipers to measure the clear inside width of the tube. Take readings across both pairs of opposing faces, close to the open end. If the tube is slightly distorted from cutting, welding or clamping, measurements may differ.
For reliable selection, check four things:
- the outside width of the square tube
- the wall thickness on at least one clean edge
- the internal width across both directions
- the condition of the cut end and internal corners
If you cannot measure the inside directly, calculate it from the outside width and wall thickness. Treat that result as nominal rather than exact. For repeat fabrication work, test one insert in an offcut from the same batch of material before ordering a larger quantity.
Allow for wall thickness changes
Tube outside size may stay the same while wall thickness changes. That changes the available bore and, therefore, the insert required.
Take 30 mm square tube as an example. With 1.5 mm walls, its nominal opening is 27 mm. With 2 mm walls, the opening reduces to 26 mm. The difference looks small, but it can be enough to turn an easy push fit into an impossible one.
This is particularly relevant when replacing missing inserts on existing furniture, gates, racking or frames. Do not assume a 30 mm square insert will fit every item described as 30 mm box section. Measure the tube you have.
Check how the insert is specified
Square inserts are commonly sold by the outside size of tube they are intended to fit, such as an insert for 20 mm, 25 mm or 40 mm square tube. The product is engineered with flexible ribs or fins to suit the expected internal dimensions of standard wall section.
However, specification methods can differ between products. Some dimensions refer to the head, some to the shank, and some to the compatible tube size. Read the product details and option descriptions before selecting. The useful question is not simply, “What size is the insert?” It is, “What tube opening and wall range is this insert designed for?”
The head is normally wider than the shank so it covers the cut edge. Choose a head that sits neatly on the tube face without excessive overhang. On a standard square tube insert, this is usually already matched to the stated tube size. If appearance is critical, especially on furniture or visible framework, check that the head profile and colour suit the finished item as well as the fit.
Account for corner radius and internal weld seam
A square tube is rarely perfectly sharp at the inside corners. Steel box section has corner radii, and inserts are made with relieved corners or flexible fins to accommodate them. The main contact is generally along the flat faces, not right into the corners.
Problems arise when the tube has unusually tight internal radii, a thick weld seam or a build-up of paint. A rigid full-square shank can bind in these conditions. A ribbed insert is more forgiving because its fins compress as it enters, but it still needs enough clear space.
Inspect the inside of the first 10 to 20 mm of tube. This is where the insert will seat. Remove loose scale, welding spatter and heavy paint runs. Do not grind away so much material that you weaken the tube or spoil a finished coating. The aim is a clean, square entrance for the shank.
Choose the right fit: firm, not destructive
A square tube insert should be a firm hand fit. It may need a light tap with a rubber mallet, using a flat block over the head to spread the load. It should not need heavy hammering.
If the head bends, the fins shear, or the tube wall visibly spreads, stop. The insert may be wrong for the bore, the tube end may be damaged, or a burr may be blocking entry. Forcing it can leave a loose insert later because the ribs have been crushed or scraped away.
Equally, avoid selecting a noticeably undersized insert just because it goes in easily. The flexible fins need to grip the internal faces. If the part can be pulled out by hand with little resistance, vibration and repeated contact with floors, equipment or handling may dislodge it.
For legs that will be dragged across hard floors, a secure fit matters more than a completely flush first push. Seat the insert squarely, then check all four head edges meet the tube end. If one side stands proud, remove it if possible, inspect the opening and refit rather than striking one corner harder.
Consider coatings and finished tube
Powder-coated, painted and galvanised tube needs a little more care. Coating on the cut edge and inside the bore reduces the opening. It can also chip if an insert is driven in at an angle.
Measure after coating wherever possible. If you are making a production run, size and test inserts using finished tube rather than bare sample material. A fitting that works in plain steel can be too tight once a heavy coating is applied.
For exposed outdoor fabrications, use an insert that fully covers the open end. The insert reduces direct ingress, although it should not be treated as a watertight seal unless the application specifically calls for one. Tube design, drainage and corrosion protection still matter on gates, railings and external frames.
A practical sizing example
Suppose you need inserts for a square tubular workbench frame. The steel measures 40 mm outside width and the wall is 2 mm thick. The calculated internal opening is 36 mm. After deburring the cut end, callipers show roughly 35.8 to 36 mm between the flat internal faces.
Start with a square insert specified for 40 mm square tube and confirm its compatible wall thickness or internal shank range. Push-fit one into an offcut or an inconspicuous leg. It should enter squarely, seat with the head against the steel and resist a firm pull. If it is excessively tight, check for coating and burrs before changing size. If it is loose, confirm that the tube is not thinner-walled than expected and that the product is intended for that bore.
This trial takes minutes and is cheaper than fitting the wrong parts across a full frame.
When a standard square insert is not the answer
Standard push-in inserts suit many jobs, but not every tube end. If the tube is heavily deformed, has a very unusual wall thickness or needs an adjustable foot, a plain blanking insert may not be the correct component. Threaded inserts provide a fixing point for levelling feet, bolts or adjustable assemblies. External caps fit over the outside of the tube instead of into the bore and can suit ends where internal access or an inconsistent bore causes problems.
For ordinary square box section, keep the selection process simple: identify the nominal outside tube size, measure the actual internal opening, allow for wall thickness and coating, then confirm the insert is intended for that section. Plasttex square tube inserts are selected to make that routine job straightforward, at a cost that makes keeping spares in the workshop worthwhile.
Measure a clean sample before ordering, test the first fitting before completing the job, and the rest of the tube ends should finish neatly without unnecessary force.
