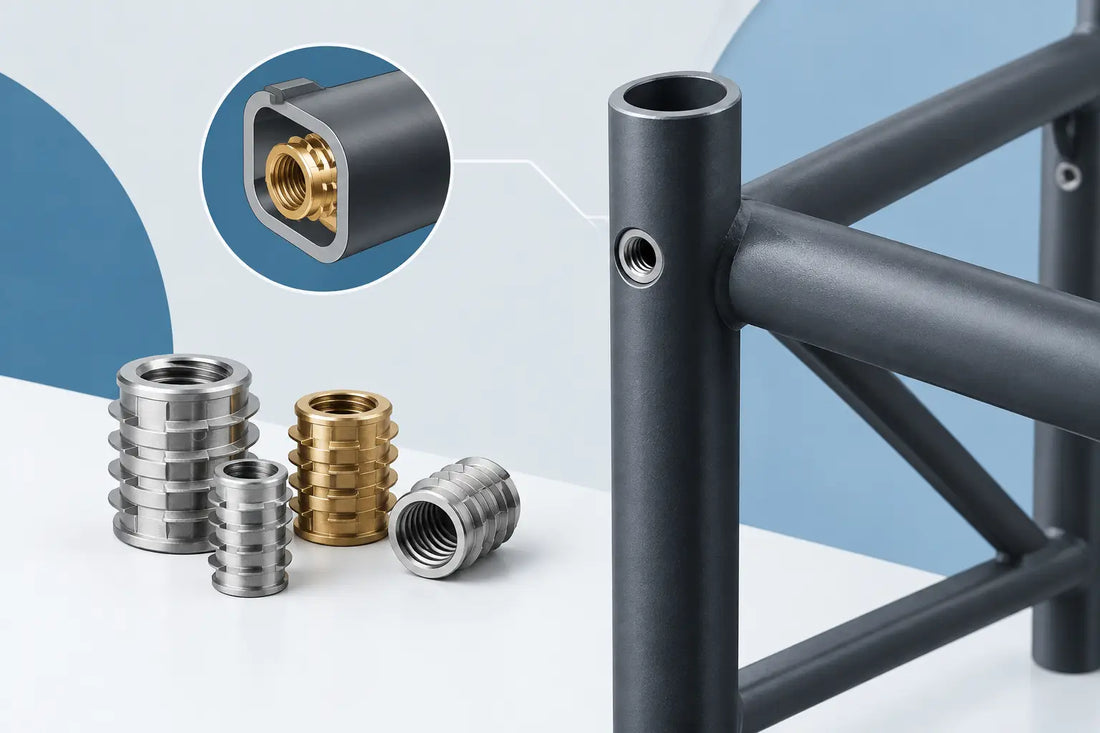

Choosing Threaded Inserts for Tubular Frames

A frame can be cut, welded and painted correctly, then still look unfinished if there is no clean way to fit a foot, bracket, panel or adjustable levelling bolt. Threaded inserts for tubular frames provide that fixing point inside the tube, leaving the outside of the frame tidy and the thread accessible where it is needed.

They are a practical answer for tubular steel furniture, workstations, guards, display stands, racking, fabricated enclosures and general repair work. Instead of welding on a nut or drilling through both sides of the tube, the insert is pushed into the open end of the section. Its threaded centre accepts a matching bolt, screw or adjustable foot.

Why use a threaded insert in a tube?

A threaded tube insert combines two jobs. It closes the exposed end of the tube and provides a female thread for fastening. That can reduce fabrication time, avoid a visible welded nut and make a finished assembly easier to adjust or dismantle.

For furniture and light to medium-duty frames, the usual application is an adjustable foot fitted into the bottom of a leg. The threaded insert keeps the foot central, protects the tube end and allows the height to be altered on an uneven floor. The same principle works for castors, brackets, panels, end fittings and removable accessories.

There are limits. A plastic threaded insert is not a substitute for a welded fixing where the joint carries major structural loads, sees repeated shock loading or must meet a specified engineering standard. The correct choice depends on tube size, wall thickness, thread size and how the finished frame will be used.

Choosing threaded inserts for tubular frames

The right insert should fit the internal shape of the tube securely without splitting the tube wall or sitting loose. Start with the tube itself, then work towards the thread and the load requirement.

Measure the internal tube size

The outside measurement of the tube does not tell you the insert size on its own. Wall thickness reduces the available internal opening. For example, a 25 mm square tube with a 1.5 mm wall has an approximate internal size of 22 mm, before allowing for corner radii and normal manufacturing tolerances.

Measure the internal width or diameter of the tube where the insert will sit. For round tube, measure the internal diameter. For square, rectangular and oval section, measure the relevant internal dimensions and match the insert profile to the tube profile. A round insert belongs in round tube; forcing it into square section will not give a secure or neat result.

Tube corners matter, particularly with square and rectangular steel box section. The internal corners are normally radiused, so an insert designed for the nominal internal size has shaped corners or flexible ribs to accommodate them. Check the stated tube dimensions for the insert rather than selecting by appearance alone.

Match the thread to the fitting

Choose the thread to suit the bolt, castor stem or adjustable foot being fitted. Metric threads such as M6, M8 and M10 are common across fabricated frames and furniture, but the correct size is the one specified by the mating part.

An M8 threaded insert needs an M8 bolt or stem with the correct pitch. Do not assume a bolt will fit merely because it appears similar in diameter. Cross-threading damages the insert and can leave a fitting difficult to remove. Start the bolt squarely by hand for the first few turns before applying a spanner or driver.

Thread length also deserves attention. A long bolt can bottom out inside the insert before the component is clamped, while a very short engagement can strip under load. Check that the threaded portion of the mating fitting has enough engagement without reaching the end of the internal thread.

Consider the load and direction of force

Threaded inserts are particularly useful where the load is mainly vertical and centrally applied, such as a levelling foot supporting a table, bench or equipment stand. They are less suitable where a bolt is continually pulled sideways, used as a lifting point or subjected to sharp impacts.

Think about more than the weight of the frame. A workbench may be leaned on, pushed across a floor or loaded unevenly. A display stand may be moved frequently. If the insert will receive repeated side load, choose a fixing method designed for that duty, or add a bracket that spreads the force into the frame.

Fitting the insert cleanly

Prepare the tube end before fitting. Remove sharp burrs, weld spatter and heavy paint build-up from the internal opening. A burr can shave the ribs from an insert, stop it seating fully or make the fitting appear crooked.

Press the insert in square to the tube end. For small quantities, hand pressure and a protective block are often enough. For a firmer fit, use a soft-faced mallet and tap evenly. Avoid striking the threaded centre directly with a steel hammer, as this can damage the thread or distort the insert head.

The flange or head should sit flush against the tube end. If it will not seat, stop and check the tube's internal measurement and condition. Forcing an oversized insert can split thin-wall tube or leave the frame leg flared. If the insert slides in with little resistance, it is likely undersized and may pull out when the bolt is tightened.

Once fitted, thread in the mating component by hand. For adjustable feet, set the initial height with enough thread engaged in the insert, then make final levelling adjustments after the frame is in position. Do not overtighten a locking nut against the plastic insert unless the fitting design specifically allows for it.

Common selection errors

Most problems come from choosing on the outside tube size or treating every threaded insert as interchangeable. Check these points before ordering:

• Measuring the outside of the tube rather than the internal opening.
• Selecting a round insert for square, rectangular or oval section.
• Matching the tube correctly but choosing the wrong thread for the foot or bolt.
• Using a standard insert for a highly loaded, impact-prone or structural connection.
• Fitting into a tube end that is burred, crushed or heavily distorted.

It is worth measuring more than one piece of tube when working with reclaimed material, imported furniture frames or mixed stock. Nominally identical tube can vary enough to affect the fit, especially where wall thickness is inconsistent.

Typical uses around fabricated frames

Threaded inserts are commonly fitted to the base of table legs, shop fittings, machine stands, shelving frames and display equipment so that adjustable feet can be screwed in. They also provide concealed fixing points for removable panels, guards and accessories where a protruding nut would be inconvenient or unattractive.

For outdoor or damp-location frames, keep the intended environment in mind. An insert closes much of the tube opening, but it does not turn an untreated steel frame into a sealed assembly. Deal with drainage, coating damage and corrosion protection as part of the frame design rather than relying on the insert alone.

Plasttex threaded inserts are intended for the everyday jobs that need a neat, usable threaded point without adding unnecessary cost or fabrication work. Select by section shape, internal tube size and thread, then order the quantity that suits the build or repair.

When another fixing is the better choice

A welded nut, rivnut, threaded boss or through-bolt may be the better option where a connection needs higher pull-out resistance, repeated dismantling or a defined structural rating. That is not a failure of the tube insert - it is simply a different job.

For standard tubular frames, getting the measurements right usually makes the decision straightforward. Measure the inside of the tube, confirm the thread on the mating fitting and test one completed assembly before committing to a full production run. A few minutes at the bench can prevent a costly mismatch across every leg or frame.
