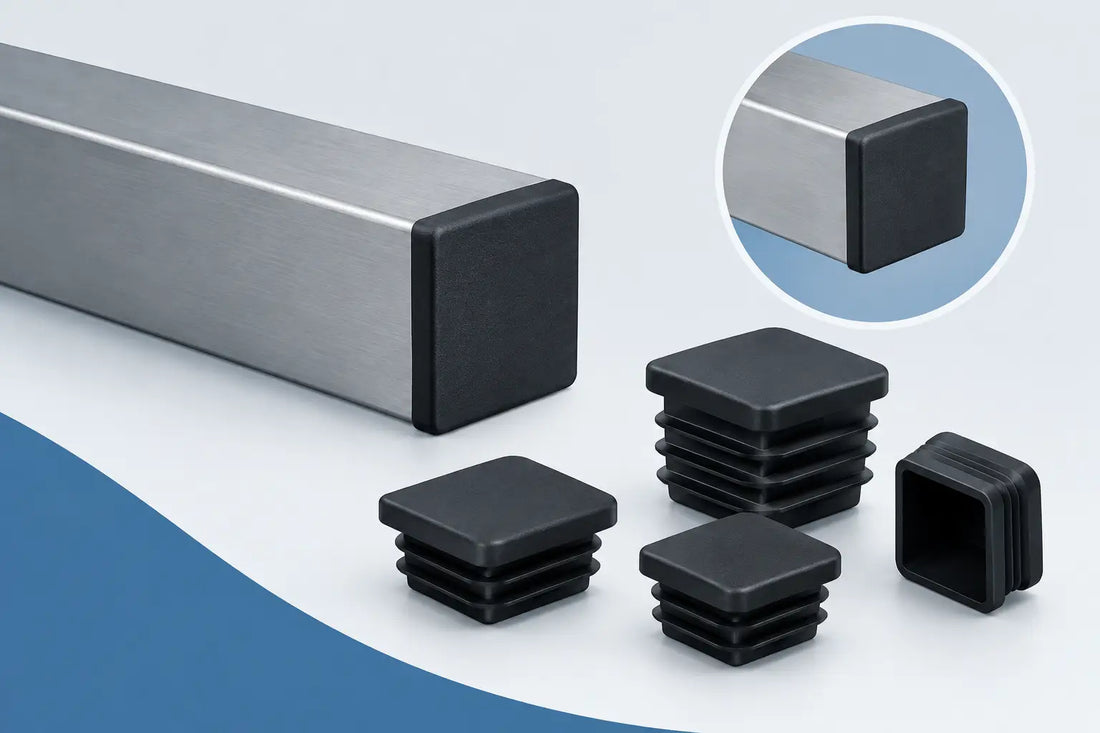

External Plugs for Square Tubing That Fit Properly

A square tube frame can be fabricated accurately, welded cleanly and finished properly, then still look incomplete because of an exposed end. External plugs for square tubing provide a quick, low-cost way to close that opening, protect the edge and give the job a finished appearance. The key is choosing a plug that fits the outside of the tube, rather than assuming all square caps work in the same way.

For fabricators, furniture makers, maintenance teams and practical DIY users, the distinction matters. An external plug sits over the outside of the tube end. It is not pushed into the bore like a tube insert. That makes it useful where the internal space is obstructed, the wall thickness varies, or a visible outside cover is the preferred finish.

What an external plug does on square tube

An external plug is a plastic cap with a square internal cavity sized to fit over the outside dimensions of square tubing. Once fitted, it covers the cut end and the sharp edges around it. Most are simply pressed into place by hand, although a light tap with a rubber mallet may help on a close fit.

The practical benefit is more than appearance. Open steel tube collects water, dirt and workshop debris. On outdoor frames, moisture entering a tube can contribute to corrosion from the inside, where it is not easily seen or treated. A properly fitted plug reduces ingress at the end of the section, although it should not be treated as a fully waterproof seal where the assembly is regularly submerged or exposed to high-pressure washing.

External plugs also remove an exposed edge from benches, railings, display stands, racking, trolleys and furniture frames. This is particularly useful where people may handle the finished item or where painted and powder-coated surfaces need a neat termination.

External plugs for square tubing versus inserts

The most common ordering error is selecting an internal insert when an external plug is required. Both finish a tube end, but their fitting dimensions are different.

A square tube insert fits inside the tube. Its stated size normally relates to the internal bore or the tube size it is designed to suit, depending on the product specification. The visible head sits against the tube end while ribs or fins grip inside the section. Inserts are often the better option when a flush finish is needed and the bore is clear.

An external plug fits over the outside of the tube. Its internal square opening must match the external dimensions of the steel section. For example, a plug for 25 mm square tube is intended to fit over a tube measuring 25 mm across the outside faces. It does not rely on the tube's internal opening, so wall thickness is less critical to fit than it is with an insert.

Choose an external plug where an internal fitting cannot be used, such as a tube with internal weld spatter, a blocked end, a captive component or an irregular bore. They are also useful where the edge needs to be fully covered rather than finished with a thin insert head.

Measure the tube before ordering

Take the measurement from the outside of one flat face to the opposite flat face. Do not measure corner to corner. The diagonal dimension will be larger and will lead to the wrong plug size.

For nominal steel box section, the stated size is often sufficient, but it is worth checking with callipers on finished work. Powder coating, galvanising, paint build-up and weld distortion can make the outside dimension slightly larger than the original section size. A plug that fits bare steel may be too tight after coating.

Measure more than one tube if the job includes material from different batches or sections that have been worked heavily. A pressed, welded or repaired tube end can be out of square, and no plastic cap will correct a badly deformed opening. Dress sharp burrs and remove weld splatter before fitting. This protects the plug and gives it an even seating surface.

Allow for coatings and end condition

Paint and powder coating are common reasons for a cap that will not push fully home. For a small build-up, fitting the plug after coating may still be straightforward. For a thicker finish, check a sample on an offcut before committing to quantity.

Avoid cutting away the inside of an external plug to force it over an oversized section. This weakens the grip and can leave the cap loose. If the tube is non-standard, it is usually better to select a suitable alternative profile or address the tube end dimension before final assembly.

Selecting the right profile and material

A standard black plastic square external plug is suitable for a wide range of indoor frames, workshop equipment and general fabricated goods. Black is practical, unobtrusive and commonly used with painted steel, but colour should be selected to suit the finished product where appearance matters.

The head profile also affects the result. A low, plain profile gives a tidy functional finish. Domed or rounded profiles can soften the end of a leg, rail or handled item. The best choice depends on whether the plug will be seen, whether it may catch on clothing or packaging, and whether the frame is moved over floors or through tight spaces.

Plastic external plugs are economical components, but the application still matters. Heat, strong chemicals, prolonged ultraviolet exposure, impact and repeated abrasion can shorten service life. For ordinary steel furniture, storage frames and general fabrication, a standard plastic plug is usually the sensible choice. For a demanding outdoor or industrial environment, confirm that the material and profile suit the conditions rather than fitting on price alone.

Fit the plug without damaging the frame

External plugs should be pressed squarely onto a clean tube end. Starting the cap at an angle can distort its sides and make it difficult to seat evenly. If hand pressure is not enough, place a flat piece of timber over the plug face and tap gently with a rubber mallet. This spreads the force and avoids marking the plastic.

Do not strike the plug directly with a steel hammer. The head can dent, crack or show a bright impact mark, particularly in cold conditions. Do not use excessive force either. Resistance usually indicates a coating build-up, burr, damaged tube corner or incorrect size.

Once installed, inspect all four sides. The plug should sit evenly around the tube with no large gaps and no obvious rocking movement. On manufactured items, fitting plugs after final coating and before packing helps prevent dirt entering the frame during storage and transport.

Common applications for square external plugs

These caps are frequently used on square steel tube furniture, shop fittings, display stands, equipment guards, storage racks, gates, frames and fabricated supports. They suit one-off repair work as well as repeat production, because installation is quick and no separate fixing hardware is normally required.

They are especially useful on visible ends where a basic internal insert would leave the tube edges exposed. On a frame used in a warehouse or workshop, that extra coverage can reduce snagging and make cleaning easier. On furniture and retail fixtures, it gives the product a more deliberate finished look without adding much cost per unit.

Where the tube end rests directly on the floor, consider whether an external plug is the correct component. A cap can protect the end, but a purpose-made foot or glide may be better where load spread, floor protection or adjustment is needed. Likewise, if the tube needs a threaded fixing point, a threaded insert is the more appropriate part.

Order by the dimension that matters

When buying square external plugs, start with the tube's outside width, then check the profile, colour and quantity required. Keep a small quantity for trial fitting where the steel is coated, old, imported or non-standard. For repeated work, recording the confirmed tube and plug size saves time on the next batch.

Plasttex supplies practical plastic finishing components for routine fabrication and repair work, with clear size options to help buyers select the part they need without unnecessary complication. A correctly sized external plug is a small detail, but it closes off the job properly - and that is often what customers, inspectors and end users notice last.
