How to Fit Plastic End Caps to Steel Tube

A plastic cap that falls off at the first knock is usually the wrong size or the wrong type, not a faulty part. Knowing how to fit plastic end caps starts with identifying whether you are closing the outside of a tube, plugging the inside, or covering a cut end that needs protection. The fitting method is simple once the component matches the section properly.

Plastic end caps are used across fabricated frames, racking, furniture, handrails, machinery guards and general repair work. They tidy an exposed end, reduce sharp-edge contact, help keep dirt and moisture out, and protect floors or adjacent surfaces from bare metal. The best result comes from accurate measurement before anything is pushed into place.

Choose the right type of plastic end cap

The term “end cap” covers several different fittings. They may look similar in a product image, but they fit in different ways.

An internal tube insert fits inside the open end of round, square, rectangular or oval tube. Its head sits against the tube face while flexible ribs or fins grip the internal wall. This is the usual choice for steel tube legs, frames and fabricated assemblies where a neat, low-profile finish is needed.

An external end cap fits over the outside of a tube or pipe. It is useful where the outer dimensions are consistent and where the tube interior is unsuitable for an insert, such as a blocked, threaded or irregular end. Because it covers the outer wall, the cap size must match the tube’s outside diameter or outside width and height.

A blanking cap or plug is normally used to close a hole, threaded opening or round bore. It may be selected for ingress protection, appearance or temporary closure rather than as a tube foot.

Before ordering, check which surface the product is designed to grip. Forcing an external cap into a tube, or trying to stretch an internal insert over the outside, will not give a secure fit.

Measure before fitting plastic end caps

Most fitting problems are avoided with a steel rule, vernier calliper or tape measure. Measure the tube itself rather than relying only on a nominal stock size, particularly on painted, galvanised or older material.

For round tube inserts, measure the internal diameter of the tube. For external round caps, measure the outside diameter. A 25 mm outside-diameter tube does not necessarily have a 25 mm internal bore: wall thickness reduces the opening, so the insert may need to be 21 mm, 22 mm or another suitable internal size.

For square and rectangular tube, measure both internal dimensions for inserts, or both external dimensions for caps. Rectangular tube is easily misidentified when viewed end-on. A 40 x 20 mm section and a 20 x 40 mm section use the same nominal dimensions, but cap orientation matters where the profile, flange or foot shape is directional.

Oval tube needs particularly careful measurement. Check the major and minor outside or inside dimensions as required, and make sure the profile is genuinely oval rather than a flattened round tube with an unusual wall thickness.

If the tube has a burr, weld spatter, heavy paint build-up or a distorted end, measure beyond the damaged area as well. The fitting should suit the usable tube dimension, but the end must be prepared before installation.

Allow for wall thickness and tolerances

Plastic inserts are made with gripping ribs so they can accommodate normal manufacturing tolerances. That does not mean any near size will do. An undersized insert can work loose; an oversized one may buckle, split or refuse to seat fully.

Tube dimensions can vary between suppliers, especially on light-gauge box section. Powder coating also reduces the internal opening and increases external dimensions. When the job is repetitive or critical, test one cap in an offcut or one finished item before committing to the full quantity.

Prepare the tube end properly

A clean, square cut makes fitting easier and produces a better finish. Remove sharp burrs with a file, deburring tool or flap wheel. Take care not to enlarge the opening or round over the edge excessively, as the flange of an insert needs a flat surface to sit against.

Clear away swarf, dust and loose coating from inside the tube. Steel fragments trapped behind an insert can stop it seating properly or create a rattle in a finished frame. If the tube has been stored outside, dry it first. A cap limits future ingress but cannot solve moisture already left inside the section.

For a cut tube with a visibly distorted end, reshape it where practical. Light crushing at the corners of square section can prevent the ribs from entering evenly. In some cases, trimming back to sound material is quicker and neater than forcing in a cap.

How to fit plastic end caps securely

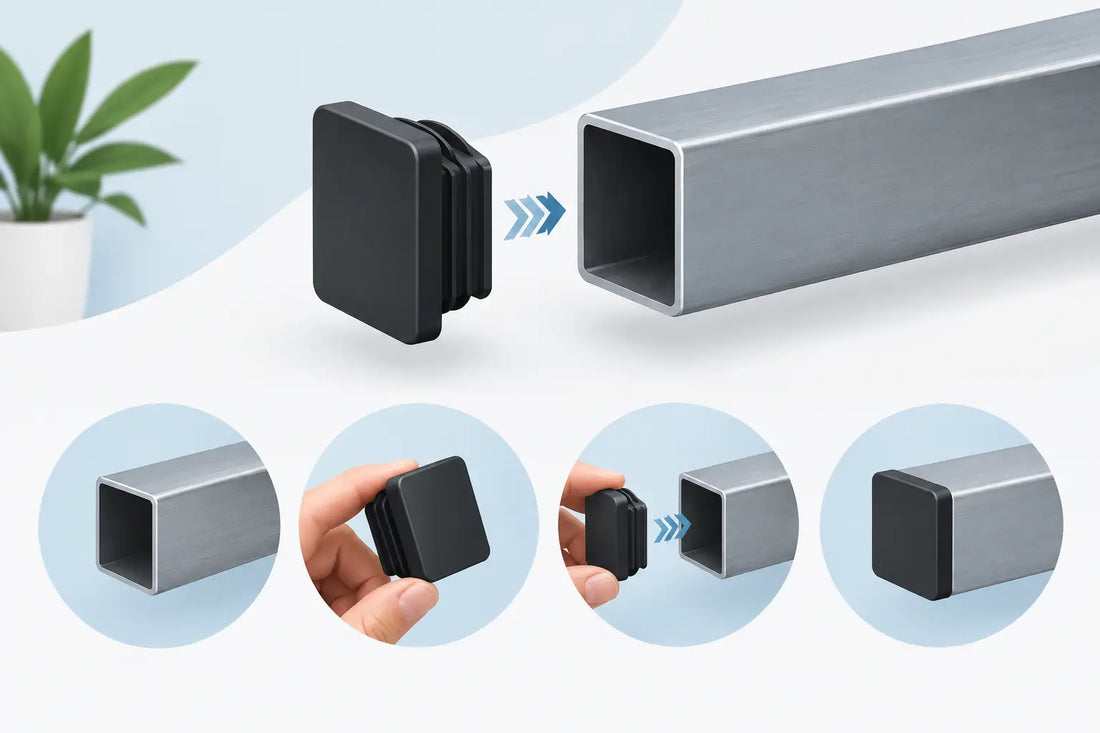

Align the cap with the tube opening and press it in straight. For internal inserts, start the ribs evenly in the bore, then apply firm hand pressure to the face. Many standard plastic tube inserts will seat by hand in clean, correctly sized tube.

If more force is needed, place a flat block of timber over the cap face and tap the block gently with a mallet. This spreads the load and reduces the chance of marking, denting or cracking the cap. A rubber mallet is preferable to a steel hammer, but the timber block is still useful on domed or broad-profile heads.

Do not strike one edge repeatedly to drive the cap in at an angle. The ribs can fold over, the flange can sit proud on one side, and the cap may later work loose. Remove and refit it if it starts crooked rather than trying to correct it with harder blows.

External caps are fitted by pushing them squarely over the tube end until the skirt sits evenly around the outside. A small amount of clean water can help with a tight external cap, but avoid oils, grease and silicone spray. Lubricants can attract dirt, interfere with grip and make later removal difficult to control.

For high-volume assembly, a simple hand press or guarded arbor press can provide consistent seating pressure. Use a flat platen matched to the cap head, and set the stop so the part is seated without crushing the flange. This is especially useful for furniture legs and batch-made tube frames.

Check the fit after installation

A correctly fitted insert sits flush or close to flush, depending on its head design. Its flange should meet the tube face evenly, with no obvious gap at one corner or side. Give it a firm pull and twist by hand. It should not move freely or come out under normal handling.

The right amount of retention depends on the application. A cap on the end of an indoor display frame has different demands from one on a frequently dragged workbench, outdoor gate or mobile equipment stand. Where abrasion is expected, select a profile intended for feet or floor contact rather than a basic thin blanking insert.

If the cap needs to be removed later, prise gently under the flange with a broad flat tool, protecting the surrounding finish. Avoid levering hard against thin tube walls. A damaged insert is inexpensive to replace; a bent or chipped finished frame is not.

Common fitting faults and what they mean

If a cap will not enter the tube, first confirm the internal measurement and inspect for burrs or coating build-up. Do not shave down gripping ribs to make an oversized insert fit. That removes the feature designed to hold it in place and gives an unreliable result.

If an insert goes in with almost no resistance, it is probably undersized or the tube has a larger internal dimension than expected. Replacing it with the correct size is generally better than using adhesive. Adhesive can be appropriate for unusual low-load applications, but it makes replacement difficult and does not correct a poor mechanical fit.

A cap sitting proud may indicate that debris is trapped behind it, the ribs have folded, or the tube is not square. Remove it, inspect the opening and fit a fresh cap if the ribs have been damaged. Reusing a distorted insert can turn a small finishing job into an avoidable callback.

For routine fabrication and repair work, keep measurements, tube wall thickness and the required cap style together on the job sheet. Once the correct part has been established, fitting plastic end caps becomes a quick final operation that protects the work and leaves it looking properly finished.
