Oval Tube Inserts for Furniture That Fit Properly

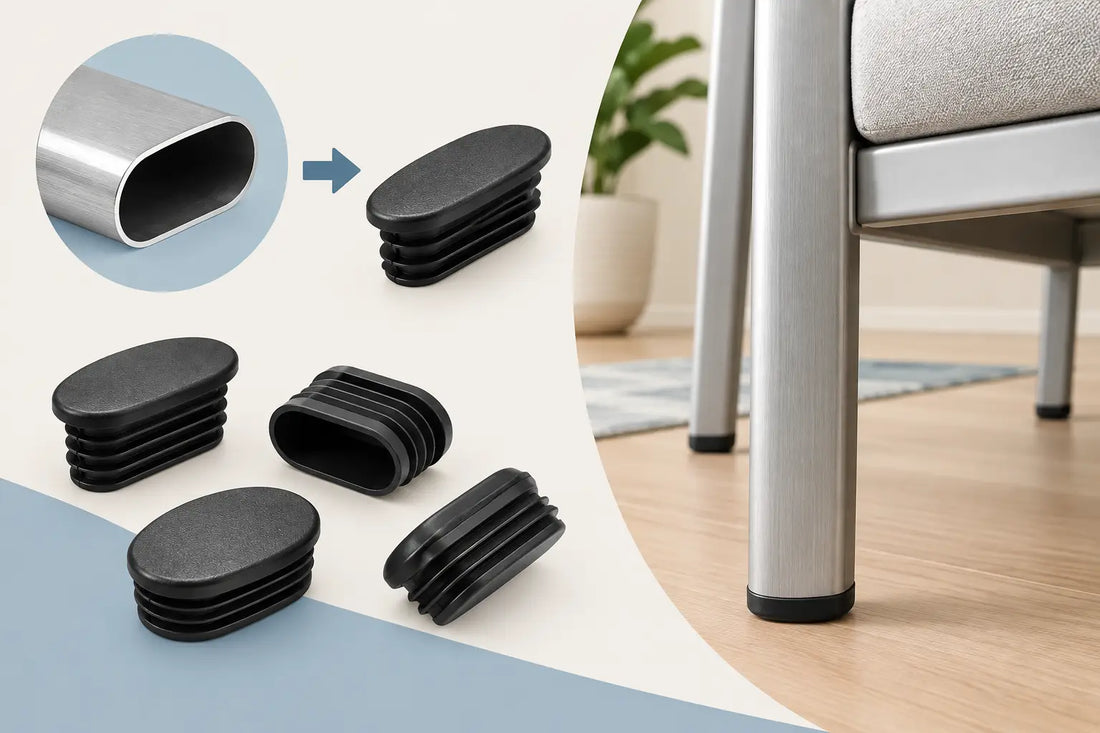

A chair leg with an open oval tube end looks unfinished, catches dirt and can leave a sharp edge where it is least wanted. Oval tube inserts for furniture provide a simple, low-cost finish: the ribbed section fits inside the tube while the head sits against the end, closing it off neatly.

For furniture makers, fabricators and repair teams, the part is small but the fit matters. An insert that is too loose can fall out in service. One that is too large may distort, refuse to seat or split the tube coating. The right choice starts with the tube's internal dimensions, not the outside measurement alone.

What oval tube inserts do on furniture

Oval inserts are push-fit plastic bungs designed for oval-section steel tube. They are commonly used on the ends of chair legs, tables, display stands, trolley frames, school furniture, gym equipment and fabricated indoor frames. Their main job is to blank an exposed hollow end, but that practical finish delivers several benefits at once.

It keeps the tube end tidier, reduces the chance of snagging fingers, clothes or floor coverings, and limits the entry of dust and moisture. On powder-coated or painted frames, a correctly sized insert also gives the assembly a more complete appearance than an open-cut tube end.

Most standard furniture inserts are black plastic with a low-profile head. Black works with many coated steel finishes and is forgiving in everyday use. Where the component will be visible, the head shape and profile deserve as much attention as the fit. A shallow rounded head gives a neat finished edge, while a wider flange can cover minor inconsistencies around the tube cut.

An insert is not always a substitute for a floor glide. If the tube end bears directly on a hard floor, repeated movement can wear the plastic head. Furniture that is dragged regularly, used outdoors or expected to carry high point loads may need a purpose-made foot, glide or adjustable threaded component instead.

Measuring oval tube inserts for furniture

The most common ordering error is selecting an insert from the external size of the oval tube. That is understandable, because stock tube is usually described by its outside width and height. A push-fit insert, however, has to match the opening inside the tube.

Measure the internal major and minor dimensions at the cut end. The major dimension is the widest internal span; the minor dimension is the narrowest. Take both measurements with callipers where possible. A steel rule can help identify the approximate size, but it is less reliable for a close push fit.

Wall thickness affects the internal opening. For example, two oval tubes with the same outside dimensions can take different inserts if one has a heavier wall. Coatings also make a difference. Powder coating, paint build-up, weld spatter and an imperfect saw cut can reduce the usable opening near the end.

Check the end before ordering

Inspect more than one tube if you are finishing a batch of frames. Tube can vary slightly between suppliers and production runs, particularly after bending, welding or coating. If the frame has been crushed, ovalised or pinched during fabrication, measure the actual opening rather than relying on the original tube specification.

A clean, square cut gives the best result. Remove sharp burrs and loose coating before fitting the insert. Burrs can shave plastic from the ribs, make installation unnecessarily difficult and prevent the head from sitting flat against the tube end.

If you are replacing a missing insert, measure the tube rather than the old part where possible. A worn or damaged insert may have compressed, and its visible head size is not necessarily the size needed for the internal bore.

How the insert stays in place

The shank of a standard oval tube insert has flexible ribs or fins around its outside. As it is pressed into the tube, these ribs compress against the internal wall and create friction. The head then stops the insert travelling too far into the tube.

This design suits general furniture use because it is quick to fit and needs no adhesive or separate fixing. It also allows damaged inserts to be removed and replaced without altering the frame. For a production run, that saves time compared with welding on caps or applying separate finishing strips.

The correct fit should feel firm when pushed home. It should not rattle, rotate freely or pull out with light hand pressure. At the same time, it should not need excessive force. If a large hammer is required, stop and check the dimensions and remove any obstruction at the tube end.

Use hand pressure for small inserts where practical. For larger sizes, place a flat piece of timber or a plastic block over the head and tap it evenly with a mallet. Striking the insert directly with a metal hammer can mark the head or drive it in unevenly. Do not force the insert by hitting one edge only, as this can crease the head or damage the tube coating.

Choosing the right head profile

The head is the visible part of the component, so it should suit the job rather than simply cover the opening. A neat low-profile head is usually right for chair frames, under-table rails and display furniture where a discreet finish is wanted. It leaves little projection and keeps the line of the tube clean.

A wider-head insert can be useful where the tube end is not perfectly neat, as the flange masks small gaps and rough coating at the cut. The trade-off is that a wide head is more visible and may not suit furniture with closely fitted feet, sockets or adjoining panels.

Consider the orientation of the oval as well. The insert must match both the width and height of the opening. A near-oval or flattened round tube can be misleading at a glance. If the profile does not correspond to the insert shape, the ribs will not bear evenly and retention will suffer.

Material and use conditions

Standard plastic inserts are well suited to indoor furniture and general fabricated frames. They are economical, corrosion-free and quick to replace. For a reception chair, workshop bench or retail display unit, this is generally the sensible option.

Conditions change the decision. Outdoor furniture needs attention to water ingress, ultraviolet exposure and temperature movement. A closed insert reduces direct entry into the tube, but it does not correct poor drainage elsewhere in the frame. If rainwater can enter through joints, fixing holes or damaged coating, deal with those points as well.

For furniture used in public areas, warehouses or schools, expect repeated knocks and dragging. A tighter fitting insert with a suitable head profile is worth choosing over the nearest approximate size. The cost difference between the correct component and an ill-fitting substitute is small; the labour involved in revisiting loose or missing caps is not.

Common fitting problems

A loose insert is usually a sizing issue. Check that the internal major and minor dimensions have been measured accurately and that the tube wall thickness has been allowed for. Do not rely on adhesive as the first fix. Adhesive can complicate future replacement and may still fail if the insert is substantially undersized.

An insert that will not enter may be oversized, but first inspect the tube end. A burr, weld seam or excess powder coat often causes the problem. Cleaning the opening carefully may restore the intended fit. If the tube is deformed, a standard insert may not be the right answer until the end is reshaped.

If the head does not sit flush, check whether the insert has gone in square. Remove it if possible and refit with even pressure across the head. Also check that the tube has been cut square. A slanted cut leaves one side proud whatever insert is used.

Ordering efficiently for a batch

For a one-off repair, measure carefully and order the required quantity with a few spares. For production or repeat fabrication, test one insert in a representative tube before committing to a larger quantity. This is particularly useful when changing tube supplier, wall thickness, coating process or frame design.

Keep the proven size with the job specification. Record the tube outside size, wall thickness, internal opening and the insert selected. That simple note prevents repeated measuring and helps purchasers order the same component with confidence. Plasttex supplies oval plastic tube inserts in selectable sizes, making it practical to match standard furniture tube dimensions without buying oversized packs.

The best-fitting insert is usually the one nobody notices. Measure the internal oval accurately, prepare the cut end properly and test the fit before assembly. The result is a finished frame that looks deliberate, stays protected and does not create a small problem for the person using it.
