A Guide to Tube Wall Thickness and Fit
Share
A tube can have the right outside measurement and still reject the fitting you have bought for it. The reason is usually wall thickness. This guide to tube wall thickness explains how that single dimension affects the internal bore, the fit of plastic inserts and the choice of external caps, so you can order parts that fit first time.
For fabricators, furniture makers and maintenance teams, this is not a theoretical detail. A loose insert falls out during handling. An oversized insert can mark the tube, split a thin wall or refuse to seat. Getting the measurement right avoids wasted components and time at the bench.
What tube wall thickness means

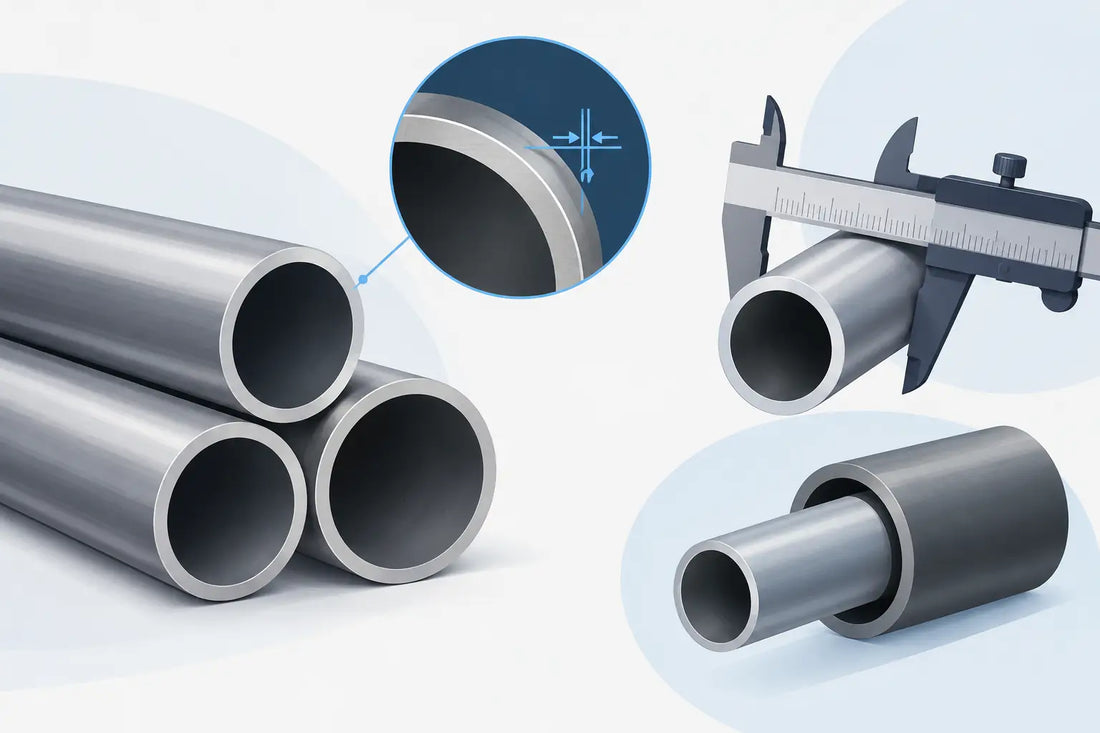

Tube wall thickness is the distance between the outside surface of the tube and its internal bore. On a round tube, it is measured across one side of the wall, not from one side of the tube to the other. On square, rectangular and oval sections, the principle is the same, although corner radii and internal weld seams can affect the usable opening.
Three measurements are commonly confused:
- Outside diameter or outside dimensions describe the external size of the tube. A 25 mm round tube has a 25 mm outside diameter. A 40 x 20 mm rectangular tube has external dimensions of 40 mm by 20 mm.
- Wall thickness is the thickness of the material, such as 1.2 mm, 1.5 mm or 2 mm.
- Internal diameter or internal dimensions describe the opening available for an insert, plug or threaded insert.
Internal diameter = outside diameter - (2 x wall thickness)
A 25 mm outside diameter tube with a 1.5 mm wall has an approximate 22 mm internal diameter. The same 25 mm tube with a 2 mm wall has an approximate 21 mm internal diameter. That 1 mm difference is enough to change the correct insert size.
With square and rectangular tube, calculate each internal dimension separately. A 40 x 20 mm section with a 1.5 mm wall is approximately 37 x 17 mm internally. This is a useful starting point, but it should not replace a direct measurement where the fit matters.
Why tube wall thickness changes fitting choice
Internal tube inserts, plugs and bungs grip against the inside wall of the tube. Their fins, ribs or flexible sections are designed to compress as the part is pushed in. The bore is therefore the critical dimension, and the bore is set by both the outside size and wall thickness.
An insert described for a 25 mm round tube may be offered in versions for different gauges of tube. One may suit a thinner wall with a larger bore, while another has a smaller shank for heavier-wall tube. Selecting only by the outside diameter is a common source of poor fit.
External caps work differently. A cap that pushes over the tube must match the outside diameter or outside profile. Wall thickness is less significant to the initial fit, but it can still matter in service. Thin-wall tube is easier to dent, and a cap that needs excessive force can distort an unsupported end.
Threaded inserts need particular care. They must both enter the bore and remain secure when a bolt, foot, castor or adjustable levelling component is tightened. If the tube wall is too thin for the intended load, the insert may hold initially but the tube can deform or the insert can pull out under repeated use. The fitting and the tube need to be considered together.
How to measure tube wall thickness accurately
The quickest reliable method is to use vernier callipers. Measure the outside diameter or external width and height, then measure the wall at a clean cut end. Take readings in more than one position, particularly with used, painted or galvanised material.
A micrometer gives a more precise direct wall reading where accuracy is critical. For routine cap and insert selection, decent callipers are usually sufficient, provided the tube end is not crushed or badly burred.
If you cannot access the tube end, measure the outside dimensions and the internal opening. The difference between them can be used to work back to an approximate wall thickness. On round tube, subtract the internal diameter from the outside diameter and divide by two. On box section, subtract each internal dimension from its corresponding external dimension, then divide by two.
Do not measure over powder coating, heavy paint, rust or adhesive residue if you can avoid it. These finishes can reduce the bore or increase the outside size enough to affect a close-fitting part. Remove loose contamination and measure the material itself where practical.
Also check the cut. A tube that has been sawn quickly may have a raised burr on the inside edge. The tube may be the correct size, but an insert can catch on that burr and look too large. Deburr the opening before deciding that a fitting will not fit.
Check the internal weld seam
Welded steel tube often has a seam along the inside. In many applications it causes no issue, but on a close-tolerance insert it can reduce the effective opening or prevent the ribs seating evenly. This is most relevant with round tube and heavier-wall box section.
Measure the bore in more than one direction and inspect the seam before ordering a large quantity. If the insert needs to sit flush or carry load, test one sample in the actual tube. A nominal calculation cannot show every variation in manufactured tube.
A practical guide to tube wall thickness and inserts
Start with the shape. Identify whether the section is round, square, rectangular or oval. Then record the outside measurement, the wall thickness and the internal opening. For rectangular tube, write down both dimensions, for example 50 x 25 x 1.5 mm. That is clearer than saying it is "50 x 25 box" and helps prevent an incorrect selection.
Next, decide what the fitting has to do. A simple plastic tube insert may only need to close an exposed end and give a tidy finish. A threaded insert may support an adjustable foot or a fixing bolt. A blanking cap may keep dirt and moisture out. The more load or repeated movement involved, the less sensible it is to rely on a rough measurement.
For a standard push-fit insert, use the supplier's stated tube size and wall-thickness range where provided. The head of the insert normally covers the tube edge, while the ribbed shank fits inside. The head must suit the outside profile; the shank must suit the internal bore. Both dimensions matter.
For a round external end cap, use the tube's outside diameter. For square and rectangular external caps, match the external width and height, allowing for the manufacturer's stated tolerance. Do not assume that a cap for nominal pipe will suit tube of the same quoted size. Pipe and tube are often specified differently.
Tube, pipe and gauge are not interchangeable terms
Steel tube is commonly described by outside diameter and wall thickness. Pipe may instead be described by nominal bore, schedule or a nominal pipe size. Those conventions do not always produce the dimensions you expect. A fitting chosen from a pipe description can be wrong for a tube frame, even when the quoted number looks familiar.
Gauge creates another potential problem. Gauge values vary by material and reference table, and they are less useful than a metric wall measurement when selecting a plastic component. If the material is listed as 16 gauge, confirm the actual wall thickness in millimetres before choosing an insert.
This matters particularly on imported furniture frames, replacement legs and repair jobs. The original tube may be described in inches, gauge or a nominal imperial size, while the replacement fitting is listed in millimetres. Convert carefully and measure the real item rather than relying on a catalogue description from an old drawing.
Common fitting problems and what they usually mean
If an insert drops into the tube with little resistance, the bore is too large for that insert, the wall is thinner than expected, or the tube has worn internally. A loose insert may be acceptable for a light-duty blanking application, but it is not suitable for a threaded fixing or an item that will be moved regularly.
If the insert starts but will not go in, first remove burrs and check for a weld seam. If the tube is clean and undamaged, you are likely using an insert intended for a larger wall thickness and smaller bore. Forcing it with a hammer is rarely a good fix. It can collapse the ribs, crack the head or flare a thin tube end.
If an external cap splits or will not seat, recheck the outside dimensions and the coating thickness. A cap that is only slightly undersized may look close on paper but will be difficult to fit across corners or over a painted surface. Conversely, an oversized cap may remain on a static item but work loose during transport or use.
Where appearance matters, check the head profile as well as the fit. A flat-headed insert gives a neat, practical finish. Domed, lenticular and pyramid-profile caps provide different levels of projection and impact protection. The correct profile depends on where the tube sits and whether the end is likely to contact floors, walls, people or other equipment.
Order with the real tube in mind
Tube dimensions have tolerances. So do plastic mouldings, coatings and fabricated cuts. For one-off repairs or a new production run, it is sensible to trial a small quantity before committing to a larger order, especially if the fitting must be flush, load-bearing or colour matched.
Keep a note of proven combinations once you have found them. Recording the tube profile, outside size, wall thickness and fitting used makes repeat orders quicker and avoids measuring the same job again. For common frame work, this can be as useful as keeping a stock list of bolts and fixings.
Plasttex supplies inserts, caps and plugs across common tube profiles, with options selected by the dimensions that matter. Measure the actual tube, account for its wall and finish, and the right small component becomes a straightforward part of the job rather than a return waiting to happen.
