When to Use Plastic Pipe Inserts on Steel Tube

A cut tube end is often the last small job on a fabrication, but leaving it open can cause problems quickly. Sharp edges catch hands and flooring, moisture and debris enter the section, and an otherwise tidy frame looks unfinished. Knowing when to use plastic pipe inserts helps you choose a low-cost fitting that does the job properly without adding unnecessary parts.

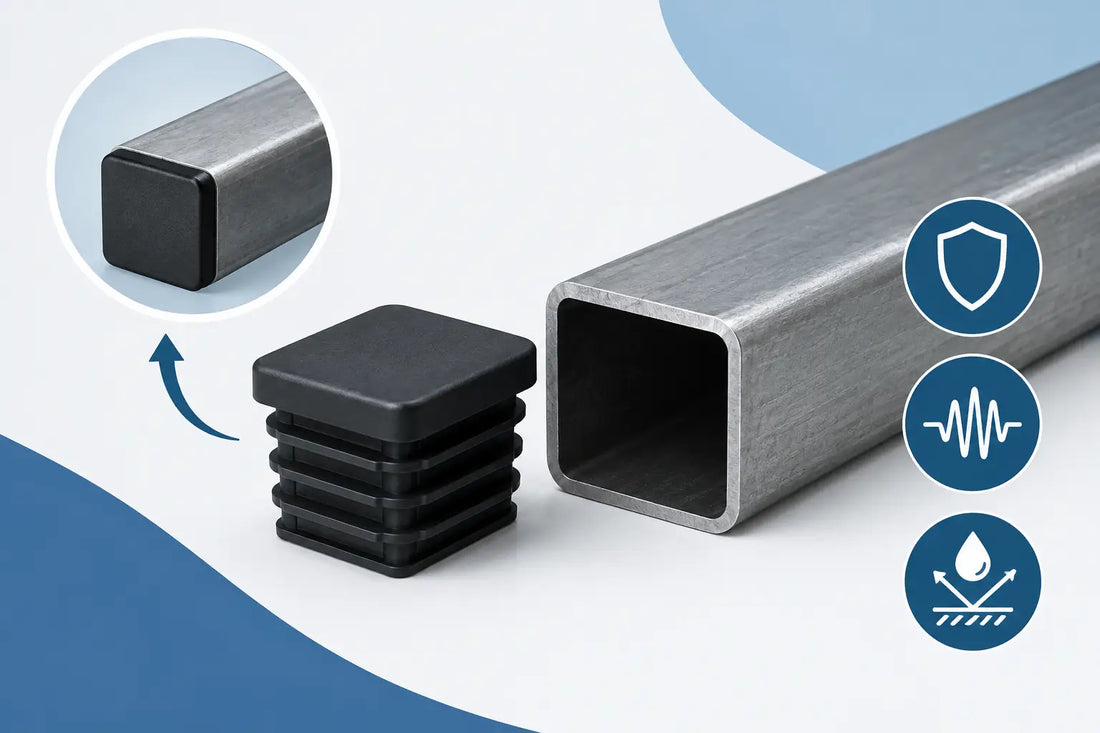

Plastic pipe inserts are designed to push into the open end of tube or pipe, leaving a neat head at the face. They are commonly used on mild-steel box section, round tube, furniture frames, display stands, gates, racking, benches and general fabricated assemblies. The correct insert protects the end, improves appearance and, in some cases, provides a usable threaded fixing point.

Use inserts when the end of the tube is exposed

The most common reason to fit a plastic pipe insert is to close an exposed tube end. This applies where a frame leg meets the floor, where the end of a rail remains visible, or where open tube could collect dust, swarf or water during normal use.

An internal insert gives a cleaner finish than tape, a loose bung or a makeshift welded plate. Its head sits against the tube face while flexible ribs grip the inside wall. Once fitted, it stays in place under ordinary handling and gives the component a finished appearance.

For furniture, shop fittings and fabricated frames, inserts are particularly useful where people may see or touch the tube ends. A plain black plastic insert is usually enough to remove the raw, unfinished look of cut steel. It also covers minor burrs left after cutting, although sharp or oversized burrs should still be removed before fitting.

When to use plastic pipe inserts for protection

Use an insert where the tube interior needs reasonable protection from dirt and moisture. Open sections on outdoor furniture, gates, barriers and stored frames can fill with rainwater, leaves, grit and insects. Over time, trapped moisture can contribute to corrosion from the inside of steel tube, where it is harder to inspect or repaint.

A push-fit insert is not a waterproof seal. If a product is continuously exposed to weather, pressure washing or standing water, the joint between the insert head and tube can still allow moisture through. In those cases, consider the design of the whole assembly: add drainage where required, orient openings downwards where practical, and use suitable corrosion protection on the steel.

For indoor workshop equipment, trolleys and storage systems, the benefit is often simpler. The insert stops dust, filings and other debris entering the tube during use. This is useful on equipment that is moved regularly, cleaned frequently or supplied to a customer as a finished item.

Use them to make legs and frame ends safer

Tube inserts are a practical choice for the bottom of lightweight and medium-duty legs where the aim is to cover the open end and avoid a sharp steel edge. Tables, stools, display units, chairs, work stands and indoor racks often use inserts for this purpose.

However, an insert is not automatically a floor protector. A standard hard plastic head can mark delicate timber, vinyl or polished floors when a heavy item is dragged. If the finished item will sit on a surface that needs protection, use a suitable glide, foot or soft pad rather than relying on a basic tube insert.

Load also matters. Plastic inserts can cope well with normal use when correctly fitted, but they should not be treated as a structural levelling foot. For heavy benches, machinery frames or uneven floors, a threaded insert with an adjustable foot is usually the better arrangement. It gives a proper fixing point and lets you level the assembly rather than packing one corner.

Choose threaded inserts when a fixing point is needed

Not every pipe insert is simply a blanking plug. Threaded tube inserts are used when a bolt, castor, adjustable foot, knob or other threaded component needs to be fitted into the end of a tube.

This is the right option for workbenches with levelling feet, mobile frames with castors, adjustable display stands and fabricated units that need removable attachments. The insert grips the tube internally while the threaded section accepts the matching bolt or stud. It avoids the need to weld a nut into the end of the tube, which can save time and keeps the finished face cleaner.

The trade-off is that the threaded insert must suit both the internal tube size and the intended load. A light-duty threaded insert may be suitable for a small furniture foot but not for a heavily loaded trolley or equipment stand. Check the thread size, tube wall thickness, load direction and whether the fitting will be repeatedly adjusted. If the thread will be under high pull-out force, impact or vibration, a welded or purpose-designed mechanical fixing may be more appropriate.

Match the insert to the actual tube size

Correct sizing is what makes a pipe insert work. The outside dimensions of the tube are not enough on their own because the insert fits inside it. Tube wall thickness changes the internal opening, so two pieces of 25 mm square tube can require different insert sizes if one has a heavier wall.

Measure the internal dimensions of the opening after cutting and deburring. For round tube, measure the internal diameter. For square and rectangular section, measure the internal width and height. For oval tube, check both axes and select an insert made for that profile.

Do not assume nominal pipe sizes match the measured opening. Pipe and tube terminology is used loosely across trades, and nominal bore measurements can differ from actual outside and inside dimensions. Measuring the component in hand is quicker than ordering a part that is nearly right but will not fit.

A correctly sized insert should push in firmly by hand pressure or with light assistance from a rubber mallet. Protect the head with a flat block if tapping it home. If it falls in easily, it is too small. If it needs excessive force, starts to distort, or splits the tube seam or coating, stop and recheck the size.

Consider the tube profile and wall condition

Round inserts only suit round tube, and square inserts only suit square section. This sounds obvious, but profile shape is not the only issue. Corner radii vary between steel sections, especially on rectangular and square tube. A good-quality insert is made with ribs that allow some tolerance, yet an unusual internal radius or a badly deformed end can still prevent a proper fit.

Check the tube end before ordering in quantity. Galvanised coatings, powder coating build-up, weld spatter and internal seams can reduce the available opening. On old or reclaimed material, internal rust may do the same. Test one insert in a sample piece before committing to a batch for production.

Where the tube has been cut at an angle, an insert can still be useful for closing the opening, but the head will follow the angled face. If the end needs to sit flat on the floor or accept a foot squarely, cut the tube accurately or use a fitting designed for the job.

When an external cap or plug is the better choice

Plastic pipe inserts fit inside the tube. External caps and plugs fit over the outside. The difference matters when the internal opening is obstructed, when the tube wall is too thin for a secure internal grip, or when you want more coverage around the outside edge.

An external cap is often preferable for protecting the end of scaffold-style round tube, covering a visible edge, or finishing a tube where internal dimensions vary. It can also suit tubes with a rough internal seam that makes a push-fit insert difficult to install.

For temporary protection during transport, storage or coating work, a simple external cap may be faster to fit and remove. For a permanent finished product, choose the fitting based on appearance, grip and exposure rather than assuming one style suits every tube.

Fit inserts after cutting, finishing and coating

The best point to install plastic inserts is normally near the end of the build. Cut the tube, remove burrs, clean away swarf, weld and finish the frame, then fit the inserts once paint or powder coating has cured.

Fitting them too early risks damaging or losing them during fabrication. Heat from welding will damage plastic, and paint overspray can spoil the finished face. Inserts can also trap debris if installed before the tube has been cleaned.

For repeat work, keep a small set of sample inserts beside the saw or assembly bench. Testing the fit as soon as a new tube batch arrives can prevent wasted time later. The part cost is small, but correcting hundreds of wrongly specified tube ends is not.

A properly selected plastic pipe insert is a straightforward finishing component: it closes the end, grips securely and gives the job a cleaner handover. Measure the opening, consider the load and exposure, then choose the simplest fitting that suits the finished assembly.
