Rectangular Tube Plugs for Steel Frames Explained
Share
A steel frame can be accurately cut, welded and painted, then still look unfinished because its open tube ends have been left exposed. Rectangular tube plugs for steel frames are a small, low-cost fitting that closes those ends properly. They help keep out dirt and moisture, remove sharp-looking openings and give fabricated work a cleaner handover.
They are used across tables, benches, racking, guards, display stands, gates, machine frames and general box-section fabrications. The part is simple, but selecting the right one means checking more than the visible outside of the steel.
What rectangular tube plugs do

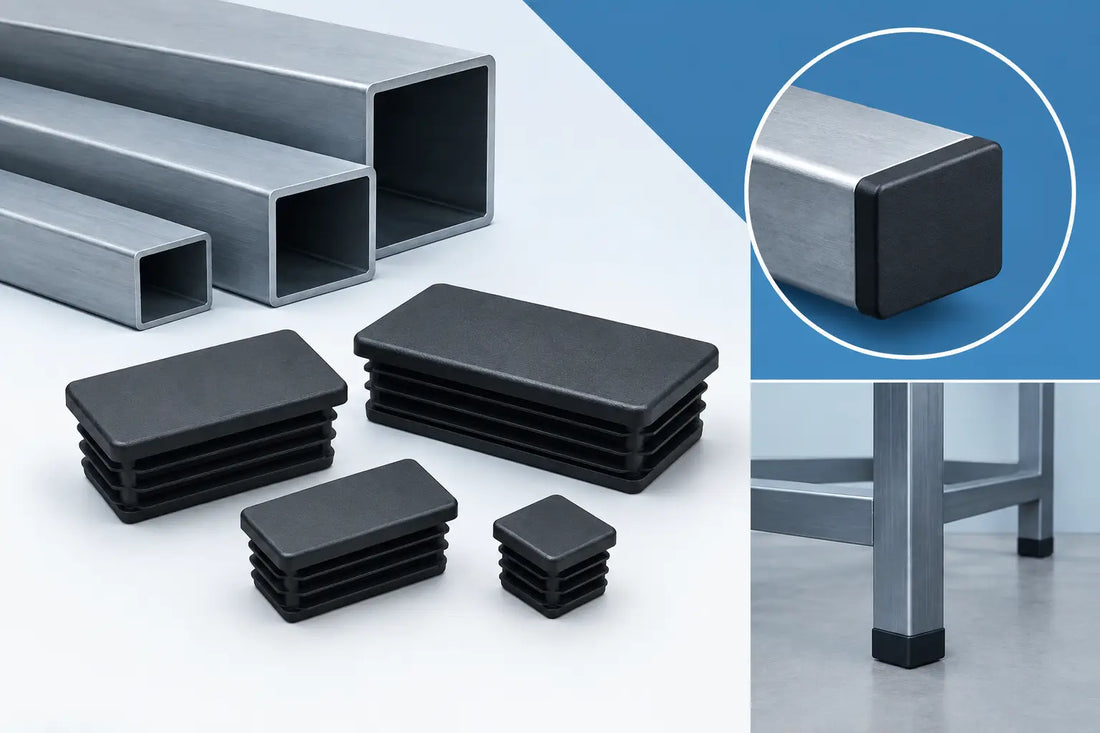

A rectangular tube plug, also called a tube insert, has a head that sits against the end of the section and a ribbed stem that pushes inside it. The outer head covers the cut edge, while the flexible ribs grip the internal walls of the tube. Once fitted, the plug stays in place without welding, adhesive or separate fixings in most ordinary applications.
The main job is to blank an open end. This reduces the route for dust, swarf, water and insects to enter hollow steelwork. It also makes a practical difference where a frame will be handled regularly. A raw tube opening can have burrs or a hard cut edge, even after deburring. A properly fitted plastic insert covers the opening and gives the end a more finished appearance.
For furniture, shop fittings and visible fabricated products, the cosmetic benefit is usually the reason for fitting plugs. For outdoor frames, storage equipment and industrial assemblies, protection from ingress can matter just as much. A plug is not a watertight seal, however. Where water exclusion is critical, the joint design, drainage and coating system need attention as well.
Measure the inside, not just the outside
The most common ordering error is choosing a plug from the external tube size alone. Rectangular steel tube is normally described by its outside width and height, but the plug stem fits the internal opening. Wall thickness therefore changes the size required.
For example, two sections may both be described as 50 mm by 25 mm rectangular tube, yet one has a heavier wall. Its internal dimensions will be smaller, and a plug intended for the lighter section may not fit. Always measure the internal width and internal height at the cut end, ideally after removing burrs and paint build-up.
A vernier calliper is the quickest way to obtain an accurate measurement. Measure both internal dimensions because rectangular section is not interchangeable with square section, and do not assume nominal stock sizes tell the full story. If the cut end has been distorted during sawing, punching or welding, check a little further back from the opening too.
Allow for wall thickness and coating
Internal tube dimensions are calculated by subtracting twice the wall thickness from each outer dimension, but a direct measurement is better where possible. Powder coating, galvanising and heavy paint can reduce the clearance further. This is particularly relevant on small section or thickly coated outdoor steelwork.
The plug should push in firmly by hand or with a light tap from a rubber mallet. It should not need excessive force. A plug forced into an undersized opening can damage the ribs, mark the head or split the tube coating at the edge. Conversely, a loose-fitting plug may work free when the frame is moved or knocked.
Choosing a suitable rectangular tube plug
A standard black plastic tube insert is the usual choice for general steel frames because it is economical, unobtrusive and suitable for routine indoor and outdoor use. The flange head masks the cut edge and gives a consistent finish across repeated assemblies.
The correct selection depends on the tube’s internal size first, then on the use of the frame. A light display frame kept indoors has different demands from a galvanised gate, a warehouse trolley or a workbench dragged across a concrete floor. In most cases, consider these practical points together:
- Internal width and height of the rectangular section
- Tube wall thickness and any coating on the inside edge
- Head shape and colour required for the finished item
- Expected knocks, vibration and handling
- Whether the end is visible, protected within an assembly or used as a contact point
Head profile matters on visible work
Most rectangular inserts have a flat or lightly domed head. A flat head gives a neat, close finish and is often preferred on fabricated frames, shelving and equipment. A domed profile may be better where a softer finished look is wanted or where the end could catch against clothing, packaging or nearby surfaces.
Colour should be chosen to suit the frame rather than treated as an afterthought. Black is the standard choice for black painted steel, general workshop equipment and many furniture frames. Other colours can be useful where a finished product needs a matched appearance, identification point or contrast detail.
Fitting plugs without damaging the frame
Fit the plug after cutting, deburring and finishing the steel. Remove loose swarf from inside the section, as sharp fragments can obstruct the stem or later rattle within the tube. Check that the plug head is clean and that the ribs are not bent from storage or previous fitting attempts.
Set the plug squarely into the opening and press evenly across the head. For larger sizes or tighter fits, place a flat block of timber over the head and tap the block lightly with a rubber mallet. This spreads the force and reduces the chance of marking the plastic. Avoid striking one corner first, as the plug can enter at an angle and crease a rib.
If a plug will not start straight away, stop and recheck the internal opening. Do not trim the ribs unless the component specification allows for it. Cutting ribs at random weakens retention and can leave a loose plug that falls out later. It is normally quicker and cheaper to order the correct size than to alter the wrong one on site.
Where tube plugs work well, and where they do not
Rectangular tube plugs are well suited to open ends on fabricated steel frames where the requirement is protection, presentation and a secure push fit. They are particularly useful on production runs because they can be installed quickly and give every frame the same finished edge.
They are less suitable where the end must be fully sealed against water, chemicals or pressure. They should also not be used as a substitute for a structural cap, lifting point, load-bearing foot or threaded connection. A plastic insert can protect an opening, but it does not change the load capacity of the steel section.
Outdoor use needs a little more judgement. A plug reduces direct ingress, but moisture can still enter through welds, joints, fixing holes or damaged coatings. Frames exposed to rain should be designed with drainage in mind, especially where trapped water could sit inside horizontal rails. Closing every opening without a drainage plan can create a corrosion issue rather than solve one.
Ordering for fabrication and repair work
For a one-off repair, measure each tube end before buying. For repeat fabrication, record the internal dimensions, wall thickness, finish and selected plug size on the job sheet or bill of materials. That avoids a familiar workshop problem: several similar-looking box sections on the floor and a bag of inserts that fit only some of them.
It is also worth holding a small range of common rectangular sizes for maintenance work, furniture repairs and frame alterations. These components cost little per unit, take up minimal shelf space and can save a return visit simply to finish an exposed tube end. Plasttex supplies focused plastic fittings for this kind of routine fabrication requirement, with options selected by size and quantity.
A correctly sized plug is one of the final details that makes steelwork look properly made rather than merely assembled. Measure the internal opening, match the fitting to the job and fit it squarely - the frame will be safer to handle, cleaner to present and better protected from the start.
