Plastic Chair Leg Inserts: Fit, Size and Use
Share
A chair frame can be well made, neatly welded and properly finished, then still look incomplete because the tube ends are left open. Plastic chair leg inserts close those openings with a tidy, low-cost fitting that helps protect the frame, reduces sharp exposed edges and gives manufactured or repaired seating a finished appearance.
For tubular steel chairs, stools, benches and similar furniture, the right insert is usually a straightforward push fit. The part that matters is choosing the correct cross-section and size before ordering. A nearly right insert is not a practical substitute: it can fall out, sit proud of the tube, split during fitting or leave an untidy gap around the edge.
What plastic chair leg inserts do

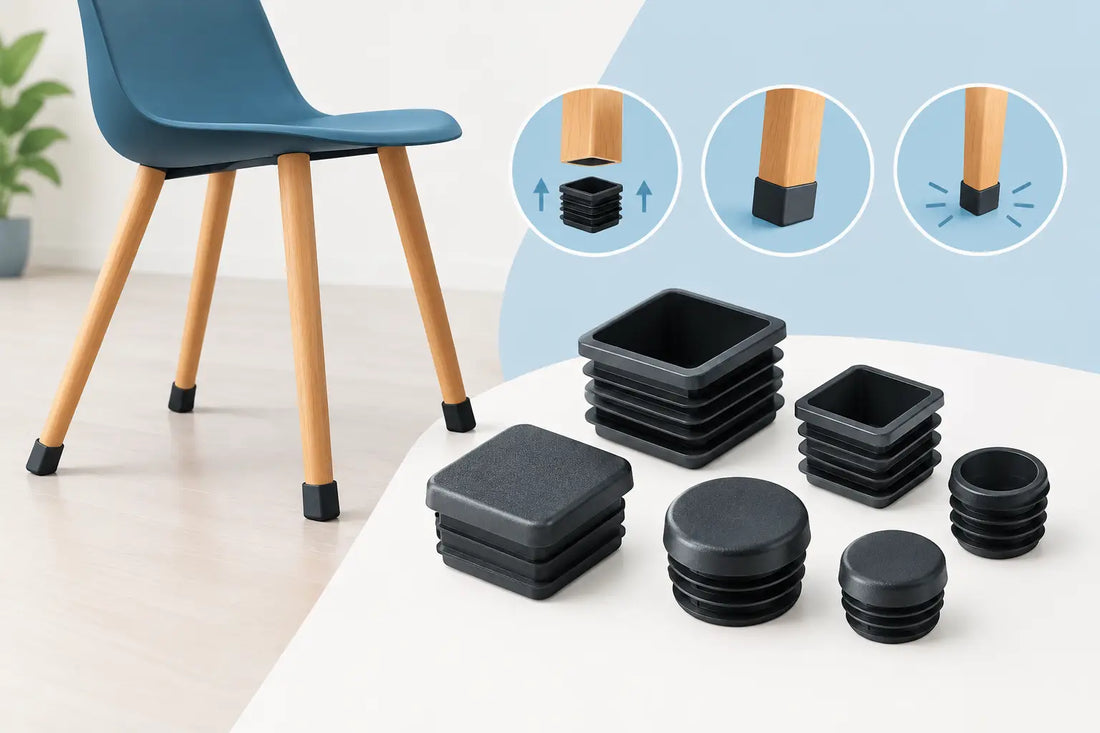

Chair leg inserts are plastic plugs designed to fit inside hollow tube. Their visible head sits against the end of the tube, while a ribbed or finned shank grips the internal wall. Once fitted, they blank off the open end without welding on a plate or adding a separate finishing operation.
They are commonly used on chair legs, table frames, school furniture, workshop seating, retail display stands and fabricated tubular frames. Black plastic is the standard choice for many applications because it gives a clean, neutral finish and is suitable for regular indoor use. Other colours may be useful where the fitting needs to match a frame or be more visible for identification.
The insert also prevents dirt, swarf and moisture getting directly into an open tube. It is not a guaranteed waterproof seal, and it should not be treated as corrosion protection for poorly prepared steel. However, closing the opening is still a sensible part of a proper finishing process, particularly where furniture is stored, moved or cleaned regularly.
Inserts are not the same as chair feet
The terms are often used loosely, but an internal tube insert and an external chair foot do different jobs. A standard insert finishes the tube end. If the chair is used on a hard floor, the visible head may provide some protection depending on its profile and material, but it is not always the best choice for frequent movement across finished flooring.
Where floor protection is the main requirement, use a component designed for contact with the floor, such as an external cap, glide or furniture foot. These fittings cover the outside of the tube and can offer a larger bearing surface. They are often the better option for chairs used on vinyl, laminate, timber or other surfaces where scuffs and pressure marks are a concern.
It depends on the frame design. Some chairs need a flush internal insert because the tube end is part of the visual line. Others benefit from an external foot that takes the wear. For commercial furniture, consider how the chair is stacked, dragged, cleaned and stored before selecting the profile.
Measuring plastic chair leg inserts correctly
Start by identifying the tube shape. Most chair frames use round, square, rectangular or oval tube, and each requires an insert made for that particular profile. A round insert will not correctly fit square tube, even if the stated dimensions appear similar.
For round tube, measure the outside diameter of the tube. For square and rectangular tube, measure the outside width of each face. An insert intended for 25 mm square tube, for example, is selected by the outside measurement of the steel tube rather than the size of the opening you can see.
This point catches out plenty of repair jobs. The wall thickness of the tube reduces the internal opening, but the flexible fins on a standard plastic insert are designed to accommodate normal tube wall thicknesses. Product sizing is generally based on the outside tube dimension, unless the specification clearly states otherwise.
Use a vernier calliper where possible. A tape measure is adequate for a rough check but can easily miss a millimetre, especially on worn, painted or powder-coated tube. Measure more than one leg if the frame is old or has been repaired. Tube dimensions should be consistent, but deformation around a damaged leg can affect the fit.
Before ordering a larger quantity, check these details:
- the tube shape: round, square, rectangular or oval
- the outside tube size in millimetres
- the tube wall thickness if it is unusually heavy or light
- whether the end is cut square and free from crushed edges
- whether the visible head needs to be flush, domed or shaped for floor contact
Choosing the right profile
A flush-head insert gives a plain, neat finish and is often used where chair legs do not slide directly across the floor. It is also useful where the insert is primarily closing the tube end rather than carrying a load.
Domed profiles are slightly rounded and can soften the appearance of a tube end. They may suit furniture frames where a completely flat finish is not required. The trade-off is that a domed head will stand proud of the tube, which may not suit stacking furniture or frames designed to sit flush against another surface.
For angled legs, check the relationship between the tube cut and the floor. If the tube is cut at an angle, a standard flat insert may not provide even contact. A purpose-made angled foot or an alternative external fitting may be the better answer. Forcing a flat insert into an application it was not designed for can lead to uneven wear and loose fittings.
Rectangular and oval inserts need particular care because there is no room to rotate the part into a better position. Confirm both dimensions and the orientation of the profile. A 40 x 20 mm rectangular insert is not interchangeable with a 20 x 40 mm fitting where the head profile or rib layout is directional.
Fitting inserts without damaging the frame
Fit the insert after cutting, drilling, welding, deburring and coating work is complete. The tube end should be clean and free from burrs, weld spatter and sharp internal edges. A burr can shave plastic from the shank during installation, weakening the grip and making removal difficult later.
Align the insert squarely with the tube and press it in by hand where possible. For a firmer fit, place a flat block of timber over the head and tap gently with a mallet. The block spreads the force and helps prevent marking or cracking the visible face. Do not strike the insert directly with a metal hammer.
If an insert refuses to seat, stop and recheck the size. Excessive force can distort thin-wall tube, damage the insert fins or split the head. A tight fit is desirable; a part that needs to be driven in aggressively is usually the wrong fitting, or the tube end needs cleaning up.
For production work, a simple hand press or fitting jig improves consistency. It keeps the insert square, speeds up repetitive assembly and reduces the risk of damaged edges. This is particularly useful for batches of café chairs, school furniture or fabricated seating frames.
Common problems and their likely causes
An insert that drops out is normally undersized, fitted into tube with an unusually thin wall or installed in a tube that has been stretched or worn. If the leg end has been repeatedly knocked, the tube may no longer be truly round or square. Measure the damaged section rather than relying on the original nominal tube size.
A proud head can mean the insert is not fully seated, the tube has internal weld residue or the shank is too large. Check inside the tube with a torch before trying again. Cutting or trimming fins to make an incorrect insert fit is rarely a dependable repair, especially on furniture that will be moved often.
Cracked or scuffed inserts usually point to rough installation, sharp tube edges or unsuitable use as a floor glide. If the chairs are dragged on abrasive concrete, even a correctly fitted finishing insert will wear faster than a dedicated furniture foot. Match the component to the job rather than expecting one small part to solve every issue.
A practical finishing detail worth specifying
Plastic chair leg inserts are inexpensive parts, but they affect how a finished frame is seen and how it stands up to ordinary handling. For fabricators, they remove an obvious unfinished detail. For repair work, they restore missing protection quickly without altering the chair frame. For buyers, a correctly specified insert means fewer loose caps, fewer open tube ends and less time spent correcting avoidable fit problems.
Measure the tube, select the matching shape and test the fit before committing to quantity. That small check is usually all that separates a tidy, durable finish from a part that never quite stays in place.
