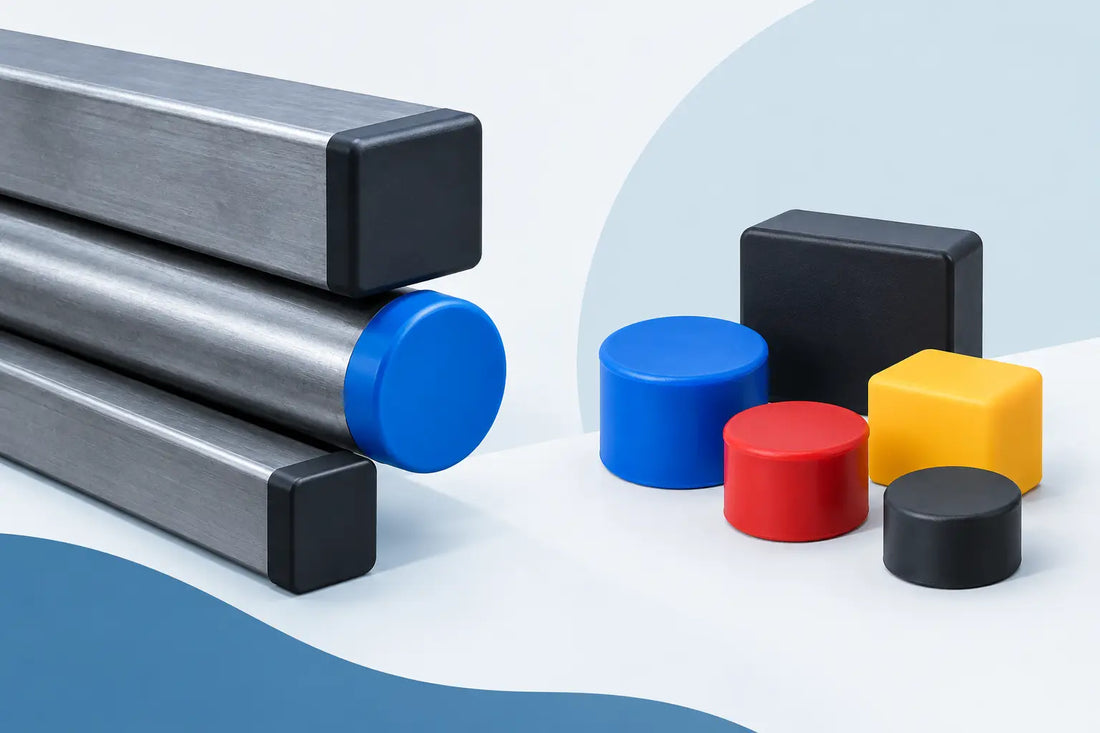

Choosing Plastic Caps for Exposed Steel Ends
Share
A cut steel tube end is a small detail until it catches a hand, marks a floor, takes on water or makes a finished frame look incomplete. Plastic caps for exposed steel ends provide a simple, low-cost way to close off the open end and give fabricated work a cleaner finish. The right cap also stays in place under normal handling, rather than becoming the first part to fall off during delivery or use.
For most jobs, choosing a cap is not complicated. The key is to identify whether the cap fits inside the tube or over the outside, measure the steel correctly, and match the profile to the application. A close fit matters more than an attractive product image or a nominal tube size.
Start with the steel profile, not the cap
Steel ends are not all the same. Round tube, square box section, rectangular hollow section and oval tube each need a cap made for that profile. A round cap will not finish square tube properly, and forcing a square insert into a near-match size risks splitting the cap or distorting the tube edge.
The first decision is whether an internal insert or an external cap is required. An internal tube insert has a head that sits against the end of the tube, with ribs or fins that push into the bore. It gives a tidy, generally flush finish and is common on furniture, display frames, racking and fabricated legs. The visible head covers the cut edge while the internal section grips the tube wall.
An external cap fits over the outside of the tube. This is useful where the internal bore is obstructed, where the wall thickness varies, or where the end needs a fuller cover. External caps can also be the better choice for protecting the outside corner or edge of a tube during handling. They add slightly more to the outside dimensions, so check that this will not interfere with adjacent parts, feet, brackets or sockets.
Blanking end caps and plugs are often used on pipework, posts and hollow sections where stopping dirt and moisture ingress is the main priority. They are practical finishing components, but they should not be treated as pressure-rated seals unless they are specifically designed and specified for that duty.
Measuring plastic caps for exposed steel ends
Most fitting problems come from measuring the wrong dimension. Do not rely only on a description such as 25 mm square tube. Manufacturing tolerances, coatings and previous finishing work can all change the actual size.
For an internal insert, measure the internal opening of the tube. The external tube size alone is not enough because wall thickness determines the bore size. For an external cap, measure the outside width, diameter or major and minor dimensions of the steel section.
Before ordering, check these points:
- the outside size of the tube or pipe where an external cap is needed;
- the internal opening where an insert or internal plug is needed;
- the tube wall thickness, especially when comparing similar internal sizes;
- the corner shape, as square section may have sharp or radiused external corners.
It is worth allowing for paint, powder coating or galvanising. A tube that was a straightforward fit before coating may need a different cap afterwards. Conversely, an internal insert may fit more tightly if coating has built up at the bore. If the job involves a production run, test one or two samples before committing to the full quantity.
Nominal size versus actual fit
A stated size is a selection guide, not a substitute for checking the part. Tube inserts are designed to grip, and their flexible fins accommodate minor variation. That does not mean every near size is interchangeable. An undersized insert may work loose; an oversized one can be difficult to install and may damage the head, particularly in thin-wall tube.
If a cap is intended for a visible furniture leg or customer-facing frame, a clean seating line is worth checking as well. A cap that technically fits but leaves a gap around one side will look poor and can collect dirt.
Choose the profile for the job
A flat-head insert is the standard choice where a neat, unobtrusive closure is needed. It suits many tube frames, guards, racks and general fabrications. Domed heads give a more rounded appearance and can reduce the hard edge on an exposed end. They are useful where people are likely to brush against the frame or where the end is prominent.
Pyramid-profile caps are often chosen for furniture legs and frames where a slightly raised, shaped finish is preferred. The choice is partly practical and partly visual. A raised cap can protect the tube edge well, but it also changes the contact point if the capped end rests on a floor.
For tubular legs, consider the surface beneath them. A standard plastic cap may prevent direct steel-to-floor contact, but it is not automatically a non-marking foot for every surface. Weight, movement, floor finish and debris underneath the cap all affect performance. For frequently moved furniture or equipment, use a component intended for the required load and floor-contact duty.
Colour is usually straightforward. Black plastic caps are the common trade choice because they suit painted and bare steel and hide workshop marks well. White, grey and other colours can be useful where the cap needs to match the finished product. For most fabricated assemblies, correct size and profile should come before colour.
Installation should not need force or improvisation
Clean the tube end before fitting. Remove loose swarf, sharp burrs, weld spatter and heavy paint runs that could stop the cap seating correctly. An insert should be pushed in squarely by hand where possible. For a tighter fit, use a mallet with a flat timber block or other protection over the cap head. Striking the plastic directly with a metal hammer can leave a dent, split the head or mark the finished surface.
If excessive force is needed, stop and check the size. Driving a cap into the wrong bore may appear to work at first, but it can stress the fitting and make later removal difficult. It may also flare thin tube or leave the head sitting proud on one side.
External caps should be pushed fully over the end until the skirt seats evenly. If they are being fitted after welding or finishing, make sure the steel has cooled and that any sharp projections have been removed. Heat and rough edges shorten the life of plastic parts quickly.
For work exposed to regular knocks, vibration or outdoor handling, inspect a sample assembly after use. A cap that remains secure on a static indoor frame may need a tighter grip, a different design or an additional retention method on mobile equipment. The best option depends on the tube tolerance and how the finished item is used.
When a cap is not the right component
Plastic end caps are finishing and protection parts. They are not a replacement for a structural end plate, a load-bearing foot, a certified safety guard or a sealed connection. Where tube ends form part of a guarding system, access barrier or safety-critical assembly, the component choice needs to meet the relevant design and site requirements.
Likewise, a cap can reduce the route for dirt and water to enter open steel, but it cannot correct poor drainage or protect a hollow section indefinitely where water is already trapped inside. Outdoor fabrications benefit from sensible drainage, suitable coatings and regular inspection as well as capped ends.
For general workshop, fabrication and repair work, though, these are exactly the kinds of details that make a job look properly finished. Plasttex supplies caps, inserts and plugs across common tube profiles so buyers can select a practical part without paying more than the application requires.
Measure the actual steel, choose the fitting method that suits the end, and test the fit before assembling the full job. A correctly chosen cap takes seconds to fit and saves the exposed tube end from becoming an avoidable problem later.
