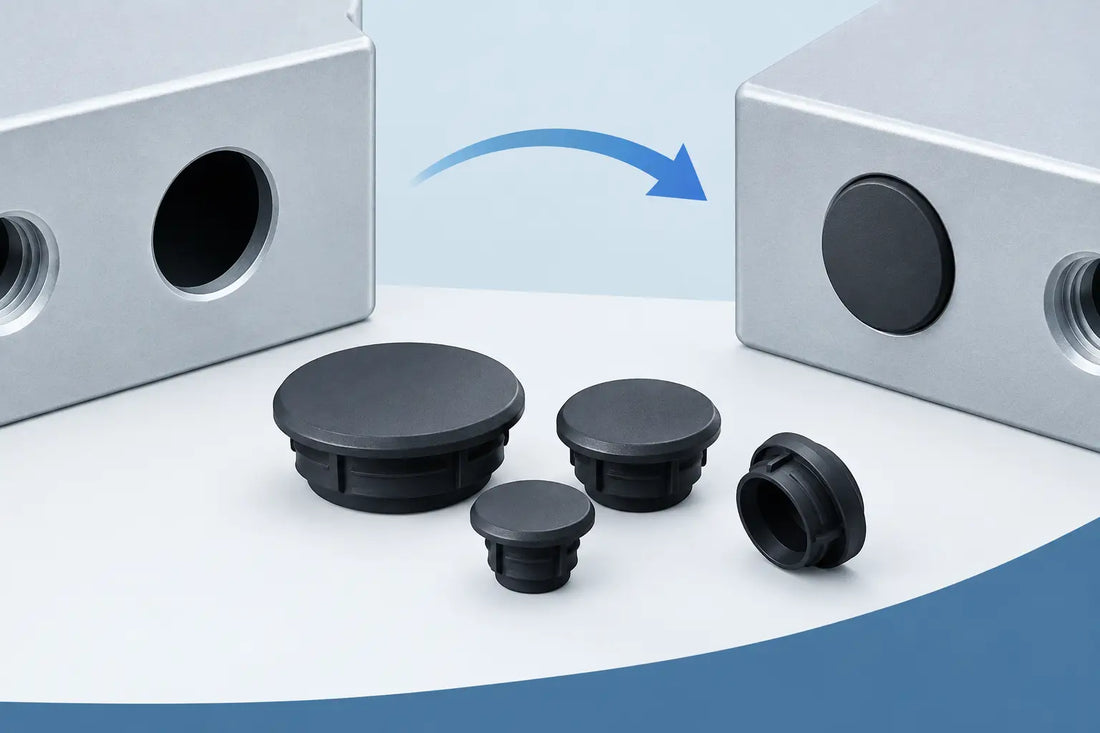

Blanking Caps for Unused Holes That Fit Properly

An unused hole in a panel, cabinet, machine guard or fabricated frame is more than an untidy detail. It can admit dust and moisture, leave a sharp edge exposed, collect dirt or make an otherwise finished assembly look incomplete. Blanking caps for unused holes provide a quick, low-cost way to close those openings properly without welding, filling or changing the part.

For most jobs, the correct cap is a simple push-fit component. Select the right diameter and panel thickness, press it into place and the hole is covered with a neat head on the visible face. The detail is small, but it matters on production work, maintenance repairs and finished furniture alike.

What blanking caps are designed to do

A blanking cap is made to close a pre-drilled or redundant hole. It has a visible top section, usually with a shallow dome or flat profile, and a fixing stem or flexible retaining features that grip within the hole. Once fitted, the cap conceals the opening while leaving the surrounding surface clean and consistent.

They are commonly used where a fixing position is no longer required, where a cable entry has been removed, or where a standard enclosure has spare apertures. Fabricators also use them to finish holes left by jigs, temporary fixtures or alternative assembly options.

This is different from a tube end cap or tube insert. Tube fittings close the end of hollow box section, round tube or pipe. Blanking caps are intended for holes through sheet material, panels and similar flat sections. A screw-hole cover may suit a recessed screw head, whereas a blanking cap closes an open hole that has no fastener in it.

Choosing blanking caps for unused holes

The hole diameter is the first measurement to get right. Measure the finished opening, not the drill size marked on a drawing. Powder coating, paint, burr removal and wear can all affect the actual size. Use vernier callipers where possible, particularly when the cap needs to look consistent across a batch.

A cap that is too small may sit loosely, rotate or fall out under vibration. One that is too large can be difficult to fit, may distort the panel edge or leave the cap head sitting proud in an uneven way. Push-fit caps are designed around stated hole sizes, so a close measurement saves time and avoids forcing the wrong part.

Panel thickness is the next check. The retaining section needs enough material to grip, and its working range must suit the thickness of the sheet, plastic panel or enclosure wall. A cap that works well in thin steel may not lock securely in a thicker plywood board or moulded plastic housing.

Also consider the shape and condition of the hole. A clean, round hole gives the best fit. If an opening is ovalised, badly burred or enlarged from a removed fixing, a standard cap may not hold as intended. Deburr metal edges before fitting. Where a hole is substantially worn or irregular, it may need repairing or enlarging to a controlled size before a cap is a sensible solution.

Select the head profile for the finished surface

The cap head is the part people see. A low-profile or flat head is often best for cabinet sides, equipment covers and furniture where the surface needs to remain unobtrusive. A domed head can give more visual definition and may be easier to remove if future access is needed.

Black is a practical default for steel frames, machinery and general workshop work. White, grey and other colours can be useful where the cap needs to match a painted enclosure, office furniture or a light-coloured panel. Matching the colour closely makes the opening disappear; using a contrasting colour can help identify inspection points or unused positions on an assembly.

Do not choose profile on appearance alone. If a panel slides against another surface, is stacked, or sits close to a wall, a raised cap may catch or prevent a flush fit. A shallow profile is usually the safer choice where clearance is limited.

Material and environment affect the right choice

Plastic caps are well suited to ordinary indoor fabrication, furniture, electrical enclosures and dry workshop conditions. They provide a clean finish, do not corrode and are economical when many holes need covering.

Exposure changes the decision. For outdoor equipment, wash-down areas or locations subject to regular moisture, the cap should fit tightly enough to reduce ingress around the edge. A basic push-fit cap can keep out casual dirt and splash, but it should not be treated as a certified watertight seal unless the specification confirms that performance.

Heat, oils, solvents and ultraviolet exposure also matter. A cap that is fine for an office desk frame may not be suitable beside a hot motor, on chemical-processing equipment or on machinery cleaned with aggressive products. In those cases, check the material specification and the actual operating conditions before ordering in quantity.

Vibration deserves the same attention. On static panels, a correctly sized push-fit cap is generally straightforward. On mobile plant, vehicle bodies or machinery with continual vibration, confirm that the retention design and panel thickness are adequate. If access to the hole will be needed regularly, a removable plug may be more practical than a cap intended to stay in place permanently.

Measure before ordering a batch

When several holes need blanking, inspect more than one. Production tolerances can mean nominally identical holes vary enough to affect fit, especially on older fabricated equipment or hand-drilled work. Measure a small sample across the job and work from the largest and smallest readings rather than assuming every opening is identical.

For a reliable selection, record the hole diameter, panel thickness, cap head diameter and required colour. The head diameter matters because it determines how much of the surrounding surface is covered. It should be large enough to hide the edge of the opening cleanly, including any slight marking from drilling or a removed fitting, without looking oversized on the panel.

Ordering a small quantity first is sensible where the application is unfamiliar or the hole condition is inconsistent. Test the cap in the actual material, check that it seats evenly and confirm that it remains secure after normal handling. That is usually cheaper than holding a large quantity of components that do not suit the finished hole.

Fitting tips for a clean result

Start with a clean opening. Remove swarf, loose coating, dirt and sharp burrs. A burr can stop the cap from seating fully, damage the retaining section during installation or leave a visible gap under the head.

Press the cap in squarely by hand where possible. For tighter fits, use even pressure through a flat, protected surface rather than striking the visible head directly with a hammer. Direct impact can mark the cap, crack brittle material or force it in at an angle. If a cap will not enter with reasonable pressure, stop and recheck the hole size instead of driving it home.

Once installed, inspect both sides where access allows. The head should sit evenly against the face, and the retaining portion should be properly engaged behind or within the panel. A quick pull test is worthwhile on maintenance work and repeat production, particularly where vibration or movement is expected.

Common applications around the workshop

Blanking caps are useful anywhere standardised panels or fabricated assemblies create spare openings. Typical examples include electrical cabinets after a switch or cable gland is removed, machine guards with unused fixing positions, tubular furniture with redundant drilled holes, steel storage units, access panels and vehicle interior trim.

They are also useful during refurbishment. Removing obsolete controls, handles or fixings often leaves holes that are functional no longer but still visible. A correctly matched cap can make a repair look deliberate rather than temporary, without the time and cost involved in welding and repainting a complete panel.

For regular workshop stock, it makes sense to keep common diameters and a few suitable colours on hand. These are small components, but they prevent avoidable delays when a finished item is waiting on one open hole to be dealt with.

The best result comes from treating the cap as a fitting, not an afterthought: measure the real opening, match it to the panel and working environment, then test the fit before committing to the full job.
